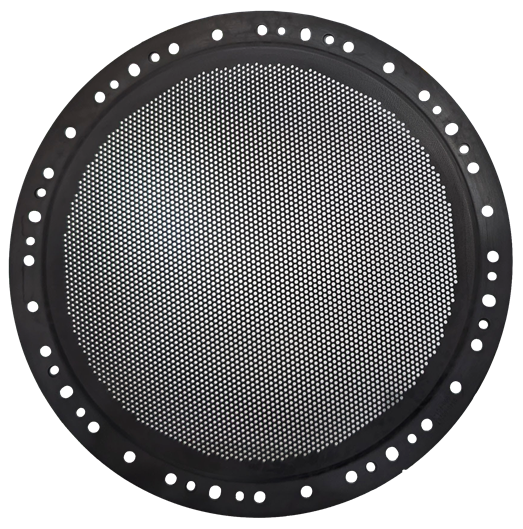

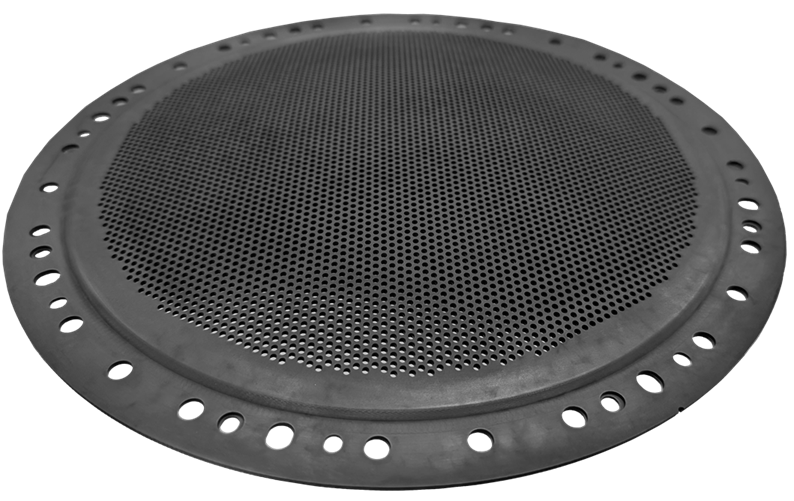

Ion Source Grids and Other Graphite Components

Ion thrusters are a cornerstone of electric propulsion systems for spacecraft.  They leverage the principles of ion sources to generate efficient, low-thrust propulsion by accelerating ionized particles to high velocities. Unlike chemical rockets that rely on explosive combustion for short bursts of high thrust, ion thrusters produce continuous, gentle acceleration over extended periods, making them ideal for deep-space missions, satellite station-keeping, and interplanetary travel. At their core, ion thrusters incorporate ion source devices that ionize a neutral propellant gas (typically xenon, krypton, or iodine to create a plasma of positively charged ions. These ions are then electrostatically accelerated through grids or magnetic fields, expelling them at high speeds to produce thrust.

The adaptation of ion sources into thrusters began in the mid-20th century, with early concepts from NASA and Soviet programs evolving into operational systems like the NASA's NEXT (NASA Evolutionary Xenon Thruster) and ESA's RIT (Radiofrequency Ion Thruster). Common ion source types repurposed as thrusters include:

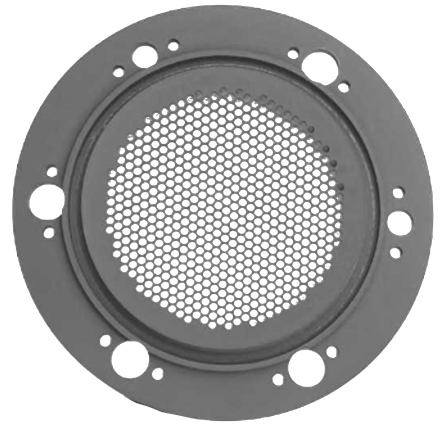

- Gridded Electrostatic Ion Thrusters: Use DC discharge or RF plasma sources to generate ions, which are extracted and accelerated through multi-aperture grids. Examples include the Kaufman thruster and modern variants like the 30-cm NSTAR used on the Deep Space 1 mission.

- Hall-Effect Thrusters (HETs): Employ a closed-drift magnetic configuration with an ion source based on azimuthal electron trapping via the Hall effect, ionizing gas in an annular channel. Widely used in satellites (i.e. SpaceX Starlink constellation) for their simplicity and efficiency.

- Radiofrequency (RF) and Microwave Thrusters: RF or ECR (Electron Cyclotron Resonance) ion sources create plasma without electrodes, reducing erosion and enabling operation with alternative propellants. These are featured in systems like the Japanese Hayabusa missions.
These thrusters demand materials that withstand high-voltage operation, extreme plasma temperatures, and ion bombardment over lifetimes, where even minor erosion can degrade performance.

Hongfeng Carbon follows comprehensive quality control processes that include 2D and 3D imaging techniques allow for detailed inspection of the components, ensuring they meet exact specifications and identifying any defects or deviations. These imaging methods provide a comprehensive understanding of the component's structure, ensuring the highest quality standards are met. Operating a cleanroom environment with advanced quality control processes with ultrasonic cleaning is vital for maintaining the highest standards of purity for the graphite components used with ion sources. Ultrasonic cleaning removes microscopic particles and contaminants from the graphite components, ensuring they are free from impurities that could affect the ion source performance.

Implementing strict quality control processes further ensures the reliability and performance of the graphite components. This includes regular testing and inspection to verify dimensional accuracy, and overall quality. By adhering to these stringent quality control measures, manufacturers like Hongfeng Carbon can guarantee the consistency and excellence of their graphite components, contributing to the success of ion implantation processes in semiconductor manufacturing.

Our expertise in ultra pure graphite materials, precision machining, and maintaining a controlled cleanroom environment underscores our commitment to delivering high-quality graphite solutions that meet the demanding requirements of the semiconductor industry. By choosing a trusted partner like Hongfeng Carbon, you can be confident in the performance and reliability of your ion sources.

Manufacturing graphite components for ion sources in semiconductor applications requires ultra pure graphite materials, precision machining, and a meticulously controlled cleanroom environment. These elements are crucial for ensuring the high performance and reliability of the components.
‍

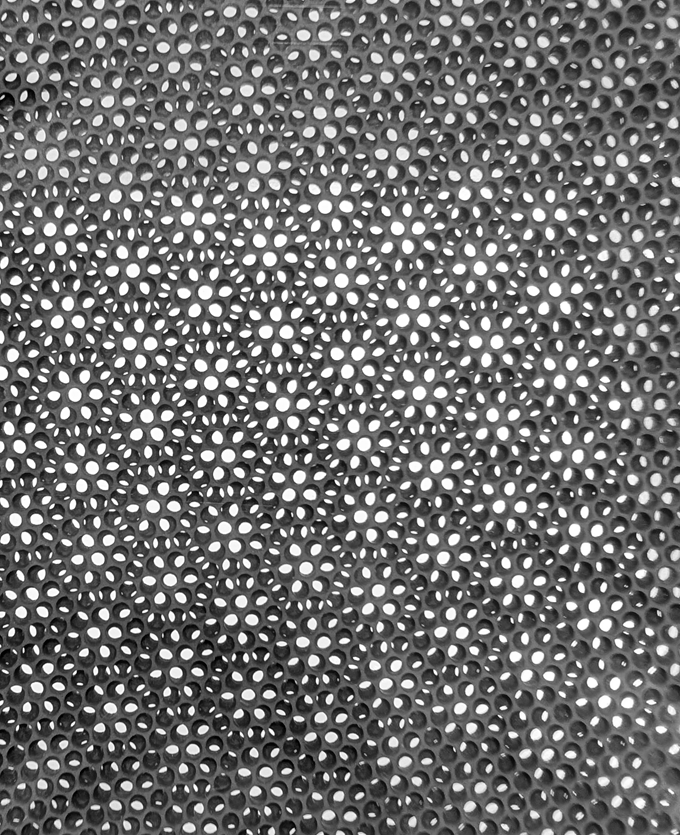

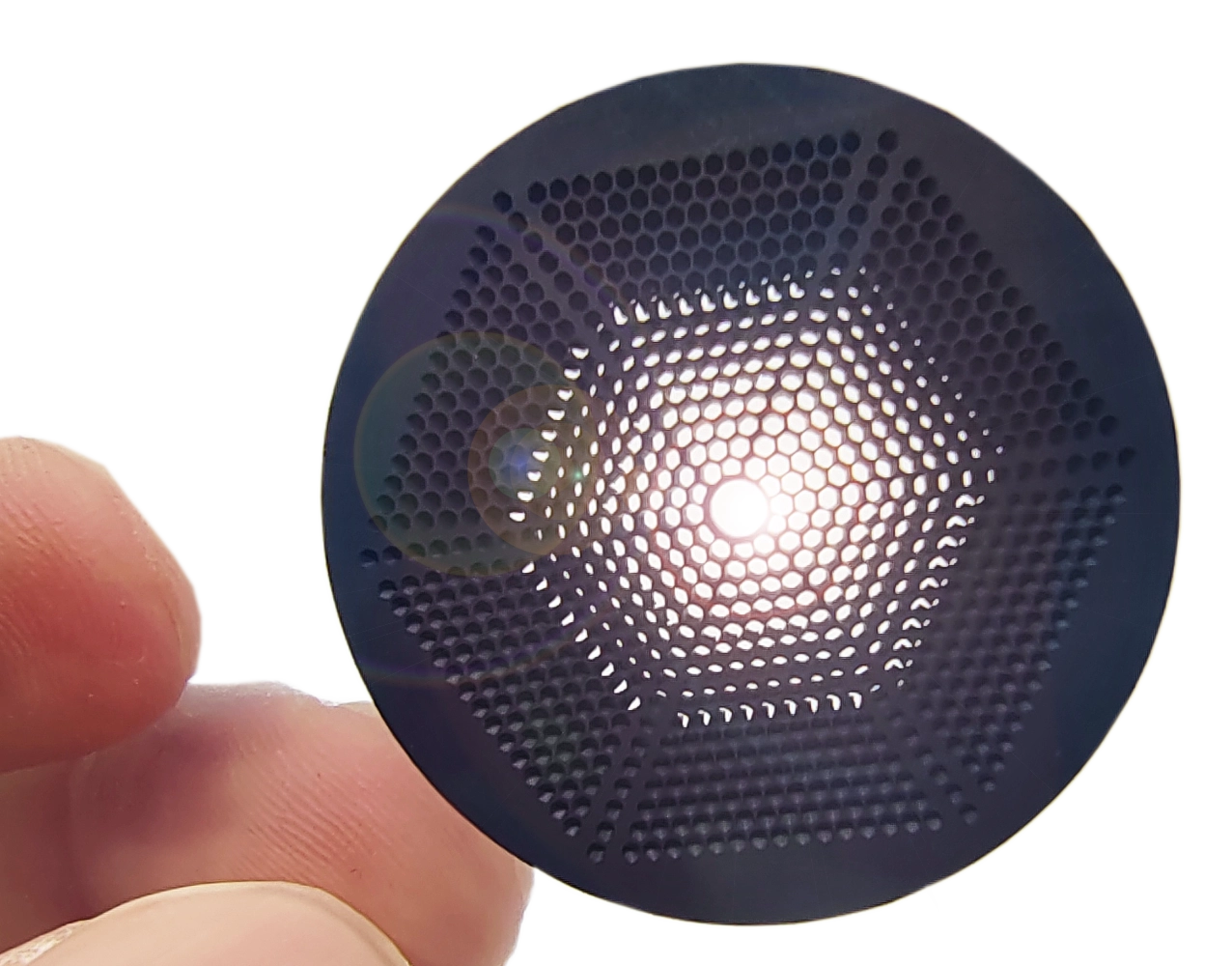

Precision machining is paramount in producing graphite components with exact specifications. The intricate structures and tight tolerances required for ion source grids demand high levels of accuracy. Precision machining ensures that each component meets these stringent requirements, resulting in consistent and reliable performance. The ability to produce complex geometries with precise dimensions enhances the overall efficiency of the ion source process.
